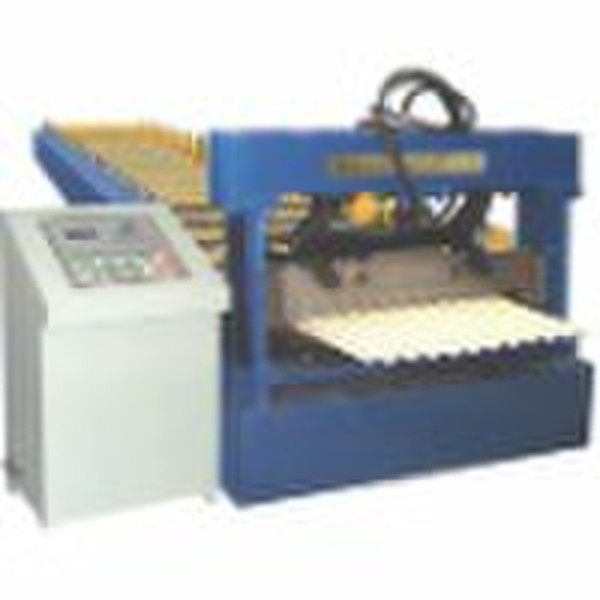

18-76-762 Corrugated Sheet Machine

18-76-762 Corrugated Sheet Forming Machine Component and Function 1. Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement. 2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet. 3. Roll forming system: The main frame of machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool. Main Parameter Machine Type YX18-76-762-810 Frame Dimension 5m*1.5m*1.4m Weight 3ton Voltage 380V/50HZ, or according to customs’ requirement Main Motor Power 4.0kw Hydraulic Cut Power 2.2kw Roller Material High grade 45# steel(plated chrome on surface) Coil Thickness 0.18-0.3mm Forming Speed 10m/min Step Of Roller 12 steps More details Package Main body of machine naked loaded into container, covered with plastic film, spare parts in box Delivery time 35days after receipt of deposit Warranty 1 year, and we will provide the technical support for the whole life of the equipment
